Fanuc AC Servo Motor
ST Part Number: A06B-0373-B177Details

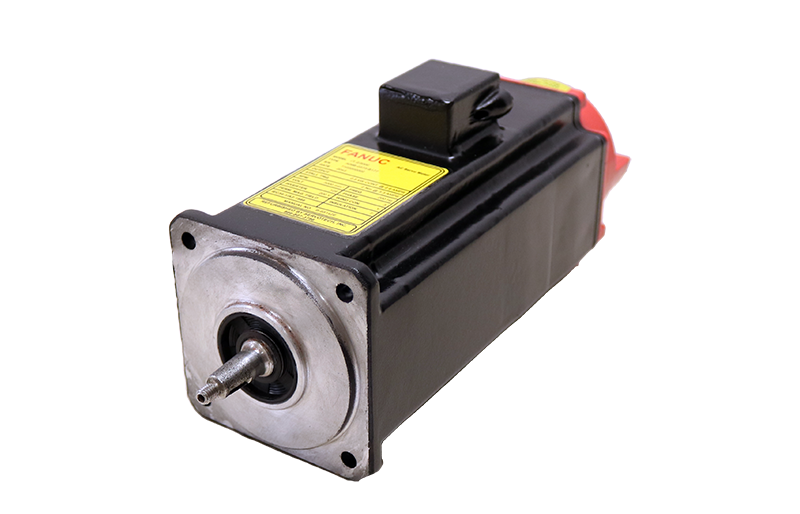

The Fanuc A06B-0373-B177 AC servo motor is a high-performance unit designed for precise motion control applications. With a rated output of 0.5 kW and a stall torque of 2 Nm, it offers exceptional power and torque capabilities for its compact size. The motor operates at a rated speed of 3000 RPM and requires a voltage of 200 volts. Equip with an Alpha I64 encoder for precise position and speed feedback. Features a tapered output shaft for easy integration into various mechanical systems.
Important Specs
Rated Output (kw): 0.5
Stall Torque (nm): 2
Stall Current (amps): 3.3
Rated Speed (RPM): 3000
Volts: 200
Encoder: Alpha I64
Output Shaft: Tapered
Brake?: N
Model: α2/3000
Type: A06B-0373-B177
Downloads
