Fanuc AC Servo Motor
ST Part Number: A06B-0313-B005Details

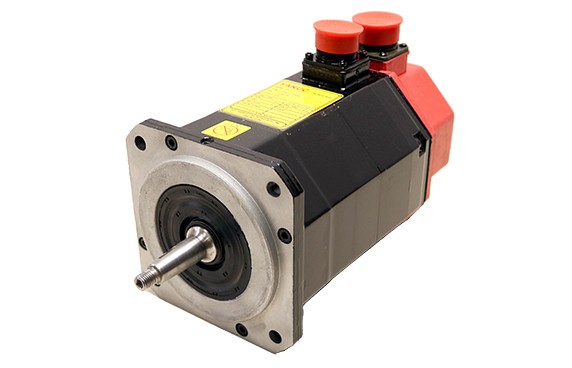

The Fanuc A06B-0313-B005 AC servo motor is a high-performance unit designed for precise motion control applications. With a stall torque of 2.9 Nm and a stall current of 4.2 amps, it offers exceptional power and torque capabilities for its size. The motor operates at a rated speed of 3000 RPM and requires a voltage of 127 volts. Equip with an incremental encoder with 2500 pulses per revolution for precise position and speed feedback. Features a tapered output shaft for easy integration into various mechanical systems.
Important Specs
Stall Torque (nm): 2.9
Stall Current (amps): 4.2
Rated Speed (RPM): 3000
Volts: 127
Encoder: Inc. 2500 PR
Output Shaft: Tapered
Brake?: N
Model: OS
Type: A06B-0313-B005
Downloads
Need a fast repair of a A06B-0313-B005 Servo Motor?
Servo motors repaired and delivered in five business days. 48-hr rapid turnaround available on most repairs.
