Fanuc AC Servo Motor
ST Part Number: A06B-0243-B200Details

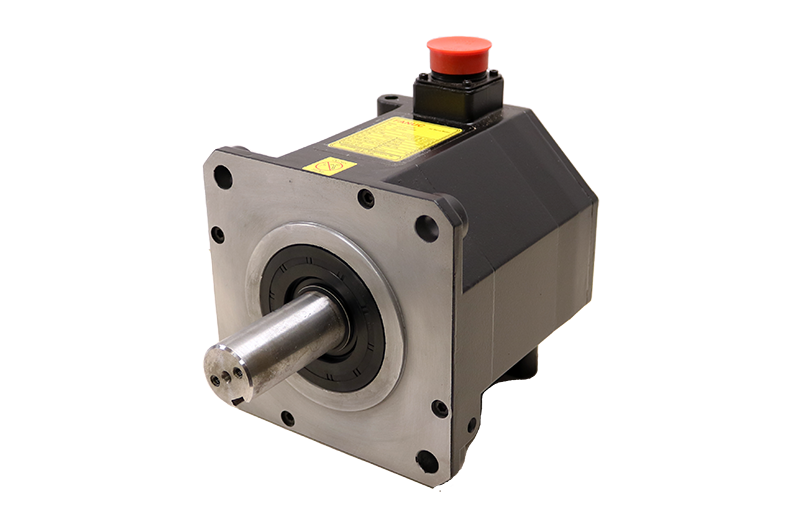

The Fanuc A06B-0243-B200 AC servo motor is a high-performance unit designed for precise motion control applications. With a rated output of 3 kW and a stall torque of 12 Nm, it offers exceptional power and torque capabilities for its compact size. The motor operates at a rated speed of 3000 RPM and requires a voltage of 141 volts. Equip with an iA1000 encoder for precise position and speed feedback. Features a straight output shaft for easy integration into various mechanical systems.
Important Specs
Rated Output (kw): 3
Stall Torque (nm): 12
Stall Current (amps): 18
Rated Speed (RPM): 3000
Volts: 141
Encoder: iA1000
Output Shaft: Straight
Brake?: N
Model: αiF12/3000
Type: A06B-0243-B200
Downloads
Need a fast repair of a A06B-0243-B200 Servo Motor?
Servo motors repaired and delivered in five business days. 48-hr rapid turnaround available on most repairs.
