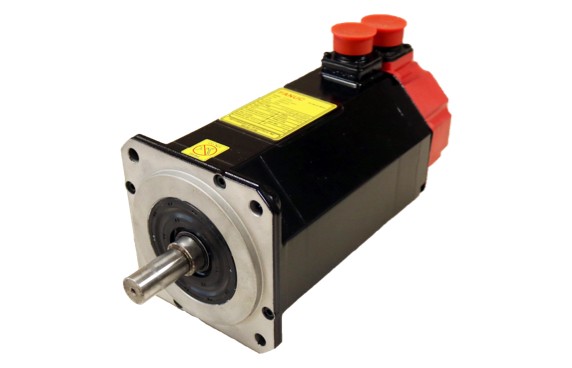

Fanuc AC Servo Motor
ST Part Number: A06B-0127-B575Details
The Fanuc A06B-0127-B575 AC servo motor is a high-performance unit designed for precise motion control applications. With a rated output of 1 kW and a stall torque of 6 Nm, it offers exceptional power and torque capabilities. The motor operates at a rated speed of 2000 RPM and requires a voltage of 200 volts. Features a straight output shaft for easy integration into various mechanical systems. Equip with an Alpha A64 encoder for precise position and speed feedback.
Important Specs
Rated Output (kw): 1
Stall Torque (nm): 6
Stall Current (amps): 5.6
Rated Speed (RPM): 2000
Volts: 200
Encoder: Alpha A64
Output Shaft: Straight
Brake?: N
Model: α 6/2000
Type: A06B-0127-B575
Downloads
Need a fast repair of a A06B-0127-B575 Servo Motor?
Servo motors repaired and delivered in five business days. 48-hr rapid turnaround available on most repairs.
